Crank blades for plastic
Choose a variant

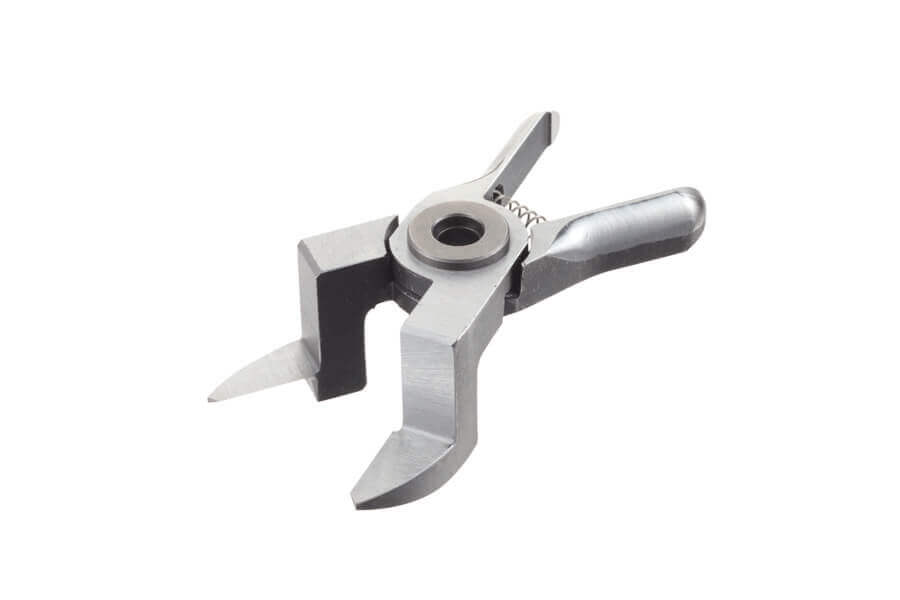

AH/RAH - Crank Blades for Plastic (Horizontal Type)
AH - This is a set of blades with a clamped cutting edge for plastic. It is effective when there are obstructions or the gate is narrow.
RAH - This is a reverse bevel of AH type used when installing the main units face-to-face.

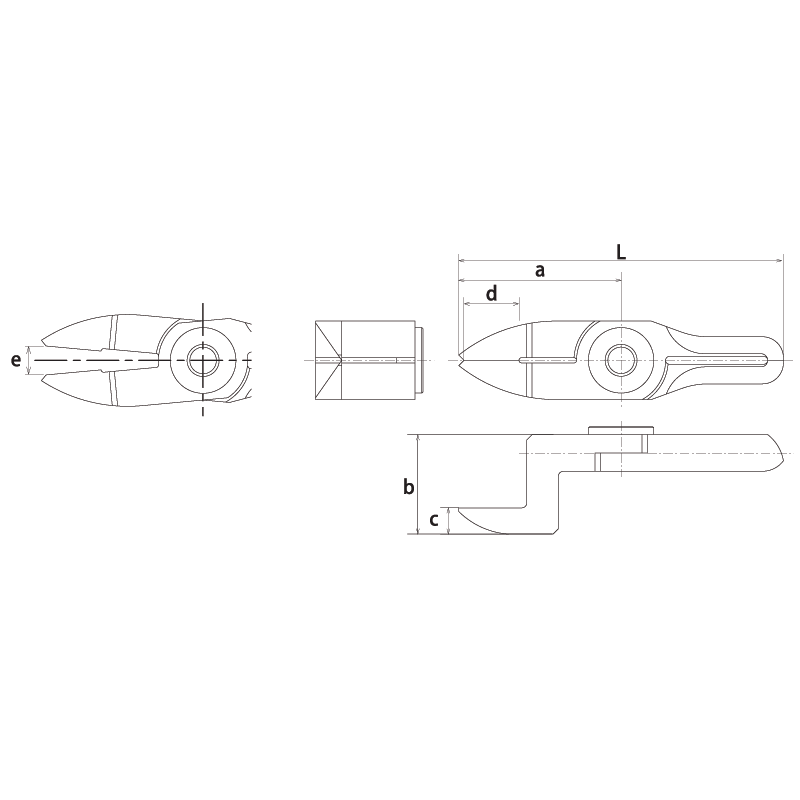

| Model No. | Size (mm) | Weight | Material | Application model | |||||
| a | b | c | d | e | L | (g) | |||
| NY05AH | 31 | 19 | 5 | 10.5 | 5.5 | 62 | 37 | Special alloy steel | GT-NY05(-4) / NF05 |
| NY05RAH | 30 | 12 | 5 | 10.5 | 5 | 61 | 31 | Special alloy steel | GT-NY05RH)/ NF0S |
| NY10AH | 33 | 20 | 5 | 12 | 8 | 66 | 43 | Special alloy steel | GT-NY10(-4) / NY10G(-4)/ NF10 / NY10S |
| NY15AH | 38 | 21.5 | 5.5 | 13 | 11 | 76 | 63 | Special alloy steel | GT-NY15(-4) / NF15 |
| NY15RAH | 35 | 13.2 | 5.5 | 13 | 9 | 73 | 52 | Special alloy steel | GT-NY15R(-4) / NF15 |
| NY25AH | 46 | 24 | 6 | 17 | 13 | 92 | 110 | Special alloy steel | GT-NY25(-6) / NY 255 |
| NY25RAH | 42 | 16 | 6 | 16 | 12 | 88 | 89 | Special alloy steel | GT-NY25R(-6) / NY 25S |
