Choose a variant
| PN | 1.Y05877 | |

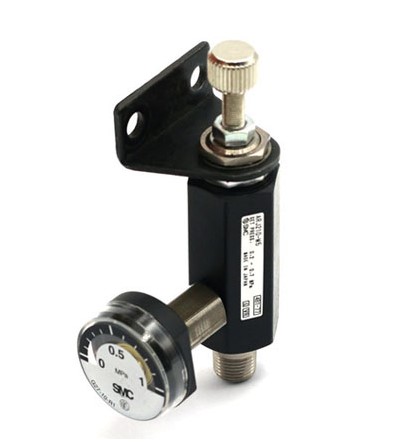

| Model | ARJ210-M5 | |
| Pipe Size | IN | 1/8 M5×0.8 |
| OUT | M5×0.8 | |
| Fluid | Air | |
| Proof pressure | 1.2 MPa | |
| Maximum Operating pressure | 0.8 MPa | |
| Set pressure range | 0.2~0.7 MPa | |
| 0.2 MPa: 0.05~0.2 MPa | ||
| Pressure gauge connecting caliber | M5×0.8 | |
| Environment and fluid temperature | -5~60℃ | |
| Weight [kg] | 0.06 | |
