Choose a variant

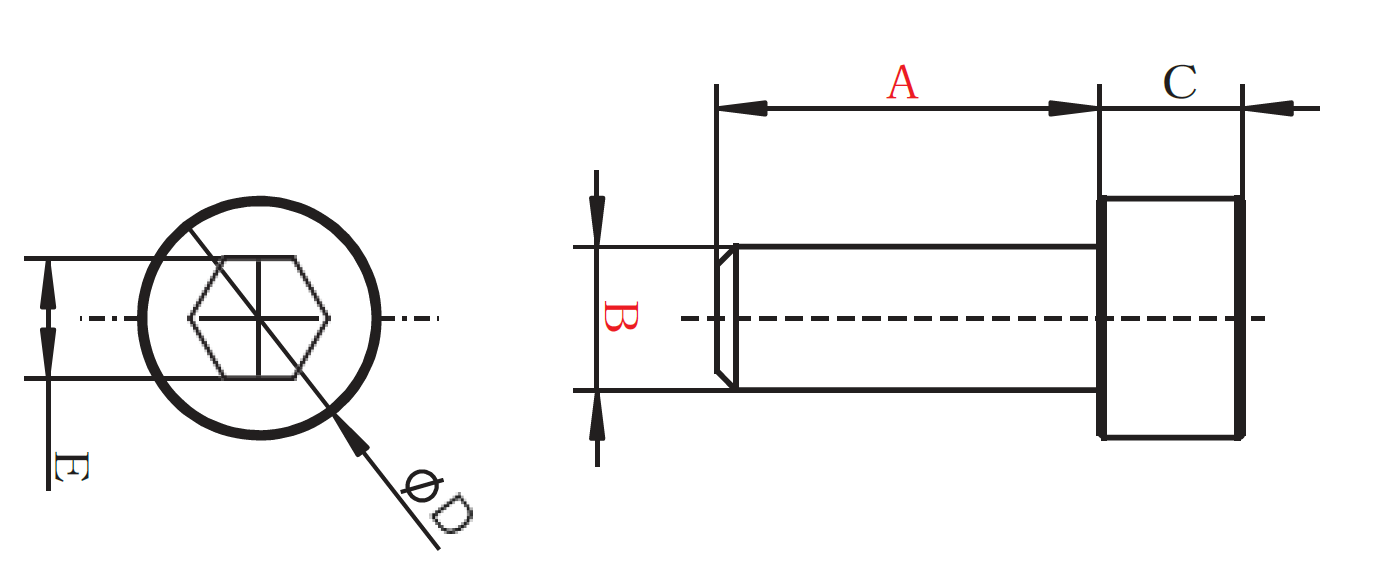

| PN | Model | A [mm] | B | C [mm] | D [mm] | E [mm] | Weight |
| 1.Y03908 | PTC-M4L10 | 10 | M4 | 4 | 6.8 | 3.2 | 1.6 g |
| 1.Y03848 | PTC-M4L12 | 12 | 1.8 g | ||||
| 1.Y02752 | PTC-M4L14 | 14 | 1.9 g | ||||
| 1.Y04073 | PTC-M4L16 | 16 | 2.0 g | ||||
| 1.Y05846 | PTC-M4L18 | 18 | 2.1 g | ||||
| 1.Y04294 | PTC-M5L10 | 10 | M5 | 5 | 8.3 | 4.1 | 2.9 g |
| 1.Y03850 | PTC-M5L12 | 12 | 3.1 g | ||||
| 1.Y04528 | PTC-M5L14 | 14 | 3.3 g | ||||
| 1.Y03849 | PTC-M5L16 | 16 | 3.6 g | ||||
| 1.Y03909 | PTC-M5L20 | 20 | 4.0 g | ||||
| 1.Y06257 | PTC-M5L22 | 22 | 4.3 g | ||||
| 1.Y03851 | PTC-M5L25 | 25 | 4.7 g | ||||
| 1.Y04469 | PTC-M5L30 | 30 | 5.3 g | ||||
| 1.Y04580 | PTC-M5L35 | 35 | 5.9 g | ||||
| 1.Y05391 | PTC-M5L60 | 60 | 10.0 g | ||||
| 1.Y04288 | PTC-M6L10 | 10 | M6 | 6 | 10 | 5.3 | 4.0 g |
| 1.Y03910 | PTC-M6L12 | 12 | 4.6 g | ||||
| 1.Y04153 | PTC-M6L14 | 14 | 5.2 g | ||||
| 1.Y02753 | PTC-M6L16 | 16 | 5.5 g |
