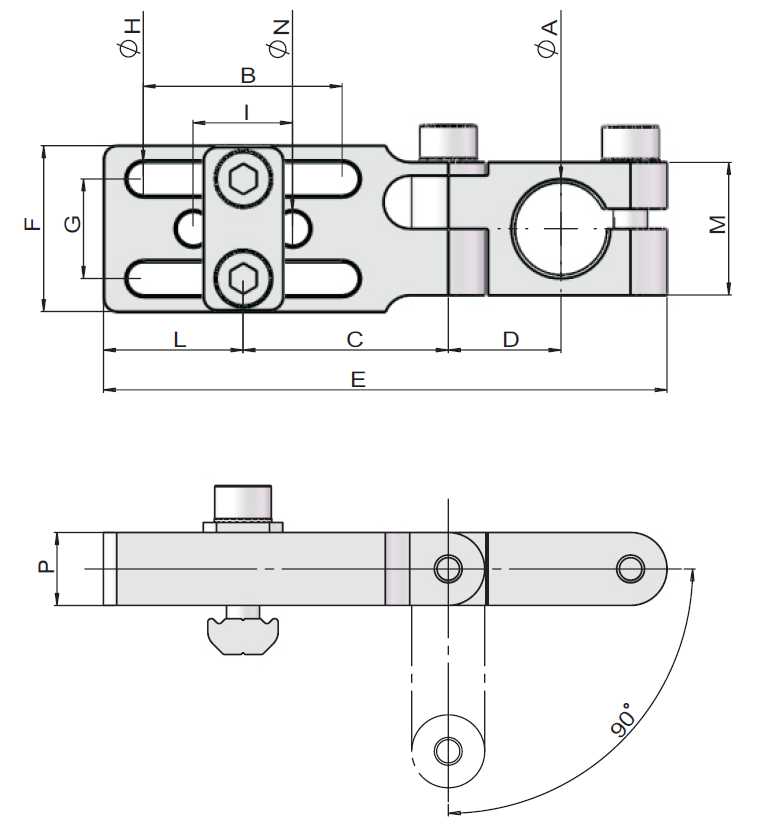

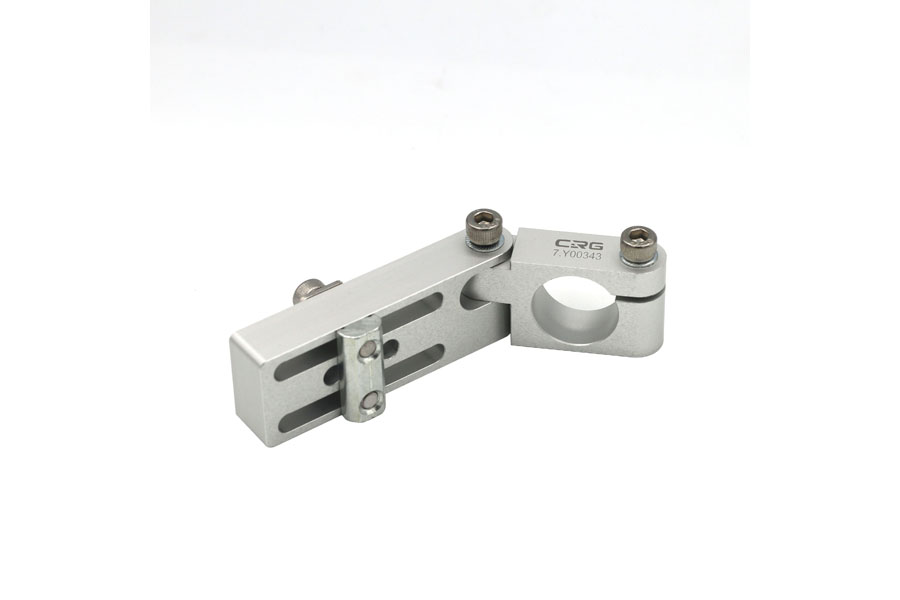

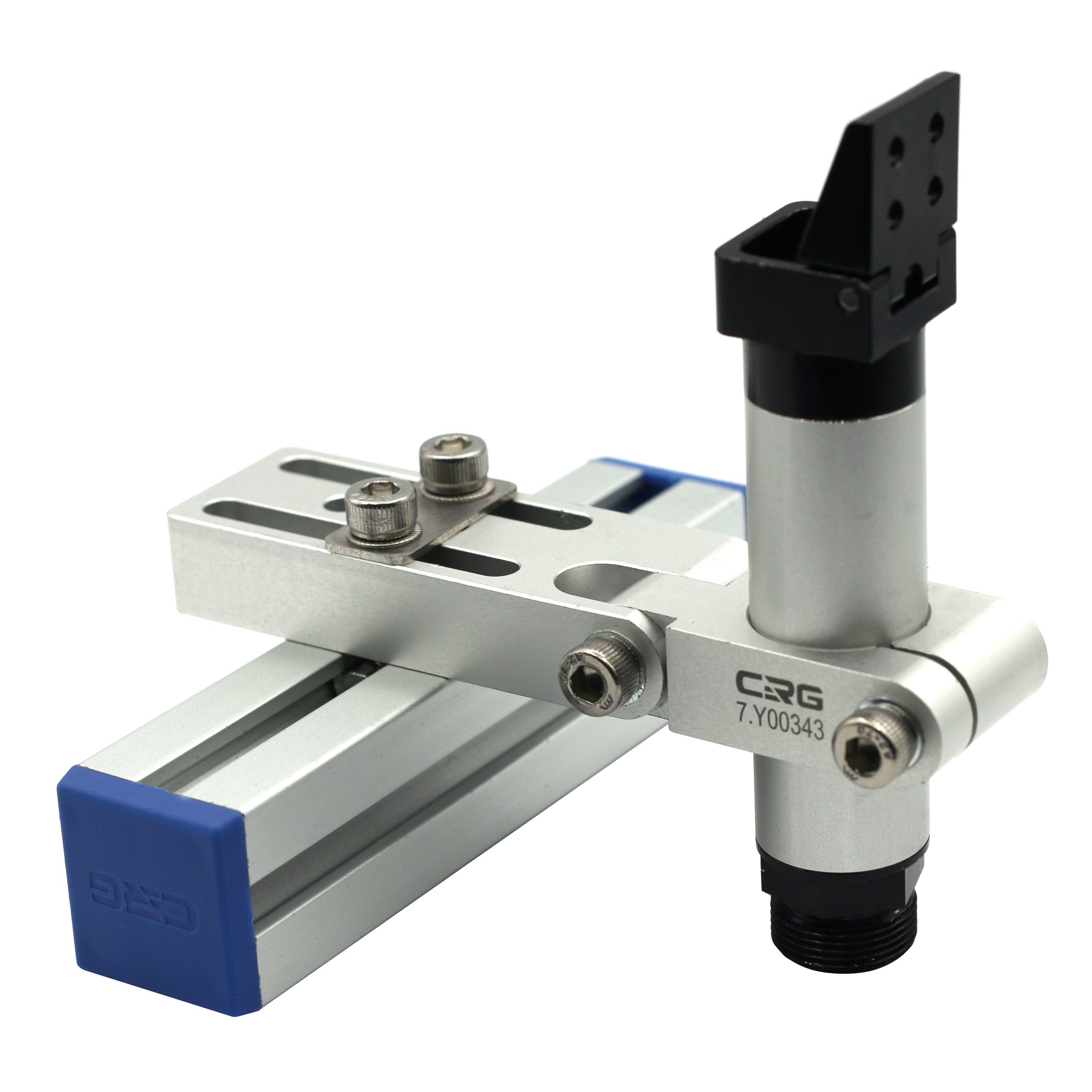

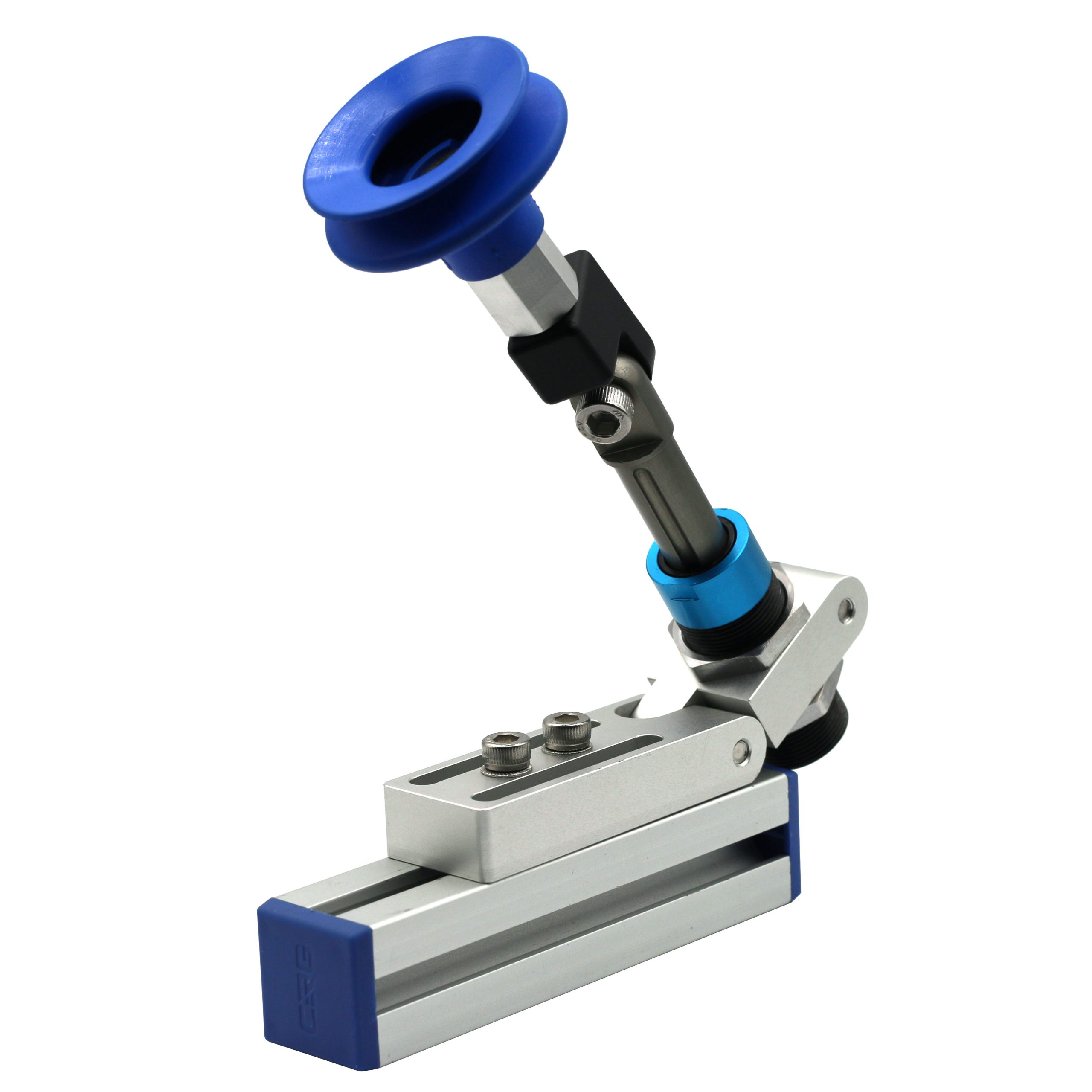

| PN | 7.Y00341 | 7.Y00795 | 7.Y00342 | 7.Y00343 | 7.Y00344 |
| Model | SMBE3-1020 | SMBE3-1220 | SMBE3-1430 | SMBE3-2040 | SMBE3-3050 |
| A [mm] | Ø10 | Ø12 | Ø14 | Ø20 | Ø30 |
| B [mm] | 20 | 20 | 30 | 40 | 50 |
| C [mm] | 23 | 23 | 31 | 39 | 49 |
| D [mm] | 14 | 14 | 17 | 22 | 28 |
| E [mm] | 64.5 | 64.5 | 85 | 107 | 135.5 |
| F [mm] | 16 | 16 | 25 | 25 | 36 |
| G [mm] | 8 | 8 | 15 | 15 | 22 |
| H [mm] | 4.2 | 4.2 | 5.2 | 5.2 | 5.2 |
| I [mm] | - | - | 15 | 15 | 22 |
| L [mm] | 15 | 15 | 21 | 26 | 32 |
| M [mm] | 16 | 16 | 20 | 25 | 36 |
| N [mm] | - | - | Ø5.1 | Ø5.1 | Ø5.1 |
| P[mm] | 9 | 9 | 11 | 13 | 16 |
| Accessories selection | |||||
| Screws | PTC-M4L18*2 | PTC-M4L18*2 | PTC-M5L20*2 | PTC-M5L22*2 | PTC-M5L25*2 |
| Single hole shim | PTS-M4*2 | PTS-M4*2 | PTS-M5*2 | PTS-M5*2 | PTS-M5*2 |
| T-Nuts | PTN-M4P8*1 | PTN-M4P8*1 | PTN-M5P15*1 | PTN-M5P15*1 | PTN-M5P22*1 |
| Double holes shim | PTD-M4P8*1 | PTD-M4P8*1 | PTD-M5P15*1 | PTD-M5P15*1 | PTD-M5P22*1 |
| Weight | 30 g | 35 g | 50 g | 90 g | 185 g |
