Choose a variant

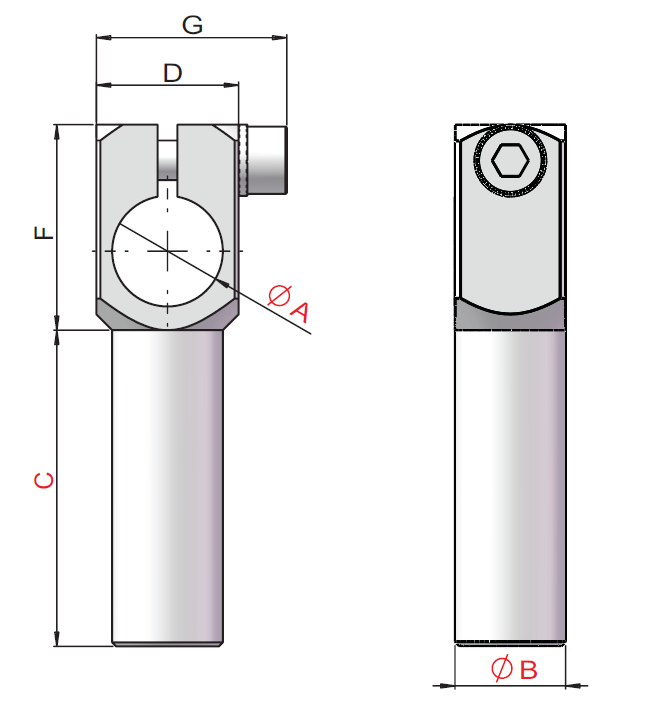

| PN | Model | A [mm] | B [mm] | C [mm] | D [mm] | F [mm] | G [mm] | Weight |
| 7.Y00398 | SCA1-1010L30 | Ø1Ø | Ø1Ø | 30 | 14 | 19 | 19 | 10 g |
| 7.Y00399 | SCA1-1010L60 | Ø1Ø | Ø1Ø | 60 | 14 | 19 | 19 | 15 g |
| 7.Y00400 | SCA1-1010L90 | Ø1Ø | Ø1Ø | 90 | 14 | 19 | 19 | 20 g |
| 7.Y00769 | SCA1-1212L30 | Ø12 | Ø12 | 30 | 19 | 21 | 21 | 13 g |
| 7.Y00770 | SCA1-1212L60 | Ø12 | Ø12 | 60 | 19 | 21 | 21 | 18 g |
| 7.Y00771 | SCA1-1212L90 | Ø12 | Ø12 | 90 | 19 | 21 | 21 | 23 g |
| 7.Y00401 | SCA1-1414L40 | Ø14 | Ø14 | 40 | 18 | 25 | 24 | 20 g |
| 7.Y00402 | SCA1-1414L80 | Ø14 | Ø14 | 80 | 18 | 25 | 24 | 30 g |
| 7.Y00403 | SCA1-1414L120 | Ø14 | Ø14 | 120 | 18 | 25 | 24 | 40 g |
| 7.Y00404 | SCA1-2020L50 | Ø20 | Ø20 | 50 | 25 | 32 | 31 | 45 g |
| 7.Y00405 | SCA1-2020L100 | Ø20 | Ø20 | 100 | 25 | 32 | 31 | 70 g |
| 7.Y00406 | SCA1-2020L150 | Ø20 | Ø20 | 150 | 25 | 32 | 31 | 105 g |
| 7.Y00407 | SCA1-3030L80 | Ø30 | Ø30 | 80 | 40 | 44 | 46 | 170 g |
| 7.Y00408 | SCA1-3030L140 | Ø30 | Ø30 | 140 | 40 | 44 | 46 | 230 g |
| 7.Y00409 | SCA1-3030L200 | Ø30 | Ø30 | 200 | 40 | 44 | 46 | 300 g |
