Choose a variant

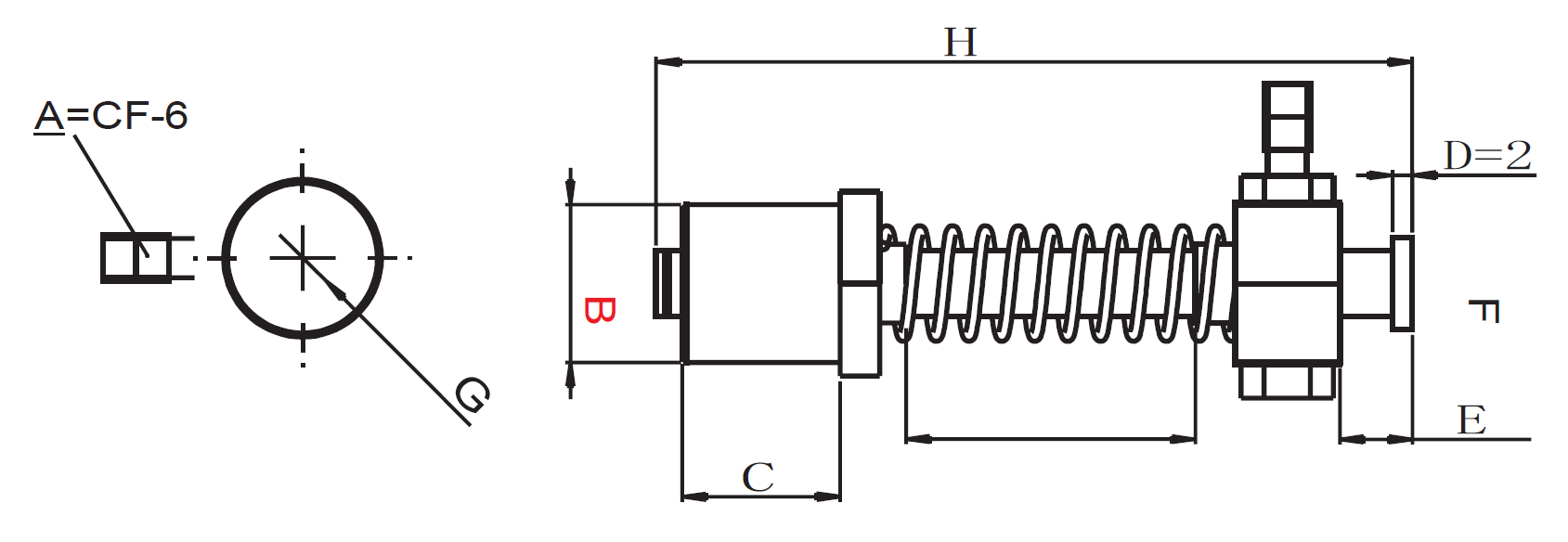

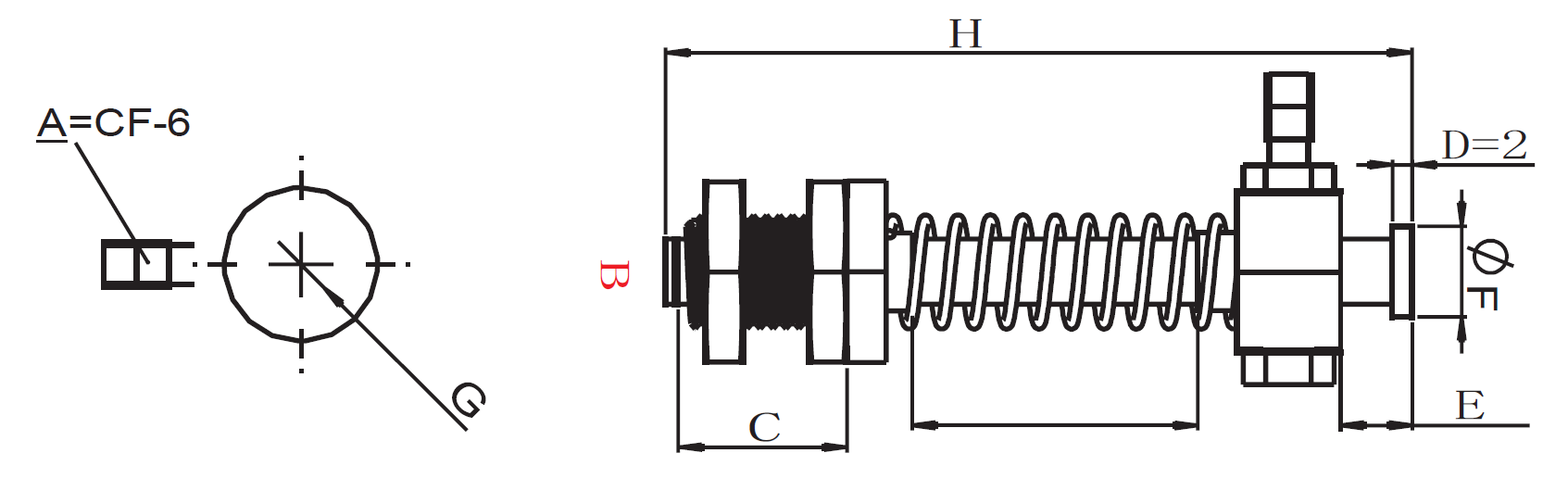

| PN | Model | B [mm] | C [mm] | E [mm] | F [mm] | G [mm] | H [mm] | S [mm] | Weight |
| 1.Y04942 | VFST-5M10 | M10 | 12 | 5.5 | Ø7 | Ø3.4 | 38.5 | 5 | 14 g |
| 1.Y00533 | VFST-10M10 | M10 | 12 | 5.5 | Ø7 | Ø3.4 | 44.5 | 10 | 15 g |
| 1.Y00531 | VFST-20M10 | M10 | 12 | 5.5 | Ø7 | Ø3.4 | 56.5 | 20 | 15 g |
| 1.Y01566 | VFST-30M10 | M10 | 12 | 5.5 | Ø7 | Ø3.4 | 68.5 | 30 | 16 g |
| 1.Y05260 | VFS-58 | Ø8 | 18 | 5.5 | Ø7 | Ø3.4 | 43.5 | 5 | 9 g |
| 1.Y05756 | VFS-512 | Ø12 | 18 | 5.5 | Ø7 | Ø3.4 | 43.5 | 5 | 13 g |
| 1.Y05261 | VFS-108 | Ø8 | 18 | 5.5 | Ø7 | Ø3.4 | 49.5 | 10 | 9 g |
| 8.Y00007 | VFS-1012 | Ø12 | 18 | 5.5 | Ø7 | Ø3.4 | 49.5 | 10 | 14 g |
| 1.Y05262 | VFS-208 | Ø8 | 18 | 5.5 | Ø7 | Ø3.4 | 61.5 | 20 | 10 g |
| 8.Y00008 | VFS-2012 | Ø12 | 18 | 5.5 | Ø7 | Ø3.4 | 61.5 | 20 | 14 g |
| 1.Y05757 | VFS-308 | Ø8 | 18 | 5.5 | Ø7 | Ø3.4 | 73.5 | 30 | 11 g |
| 1.Y05758 | VFS-3012 | Ø12 | 18 | 5.5 | Ø7 | Ø3.4 | 73.5 | 30 | 15 g |
| 1.Y00527 | VFMT-5M12 | M12 | 15 | 9 | Ø11 | Ø4.6 | 46 | 5 | 20 g |
| 1.Y00522 | VFMT-10M12 | M12 | 15 | 9 | Ø11 | Ø4.6 | 53 | 10 | 21 g |
| 1.Y00523 | VFMT-20M12 | M12 | 15 | 9 | Ø11 | Ø4.6 | 65 | 20 | 22 g |
| 1.Y00521 | VFMT-30M12 | M12 | 15 | 9 | Ø11 | Ø4.6 | 77 | 30 | 24 g |
| 1.Y05759 | VFM-512 | Ø12 | 21 | 9 | Ø11 | Ø4.6 | 51 | 5 | 15 g |
| 1.Y05760 | VFM-520 | Ø20 | 21 | 9 | Ø11 | Ø4.6 | 51 | 5 | 29 g |
| 1.Y03068 | VFM-1012 | Ø12 | 21 | 9 | Ø11 | Ø4.6 | 58 | 10 | 16 g |
| 1.Y05761 | VFM-1020 | Ø20 | 21 | 9 | Ø11 | Ø4.6 | 58 | 10 | 29 g |
| 1.Y04279 | VFM-2012 | Ø12 | 21 | 9 | Ø11 | Ø4.6 | 70 | 20 | 18 g |
| 1.Y05762 | VFM-2020 | Ø20 | 21 | 9 | Ø11 | Ø4.6 | 70 | 20 | 31 g |
| 1.Y03069 | VFM-3012 | Ø12 | 21 | 9 | Ø11 | Ø4.6 | 82 | 30 | 19 g |
| 1.Y05763 | VFM-3020 | Ø20 | 21 | 9 | Ø11 | Ø4.6 | 82 | 30 | 32 g |
