Actual force of the suction cup in use with 65% vacuum and including a safety factor of 2 for horizontal handling and a factor of 4 for vertical,

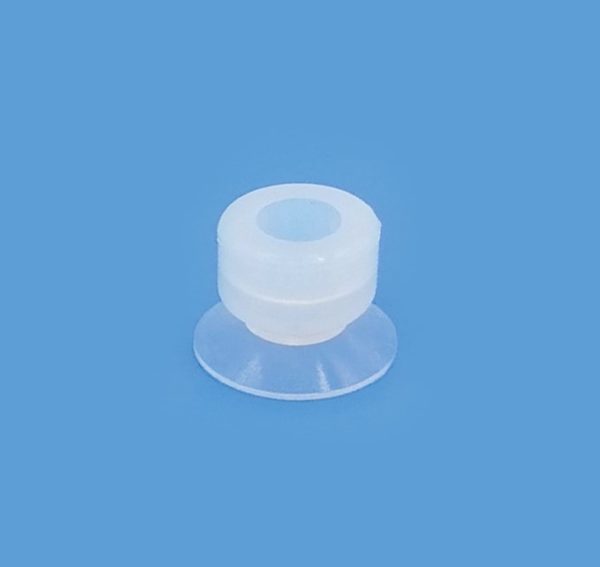

| Model | Horizontal
[N] |
Vertical
[N] |
ØA [mm] | H [mm] | ØD [mm] | ØF [mm] | PN | Fittings | |
| SI | SIR | ||||||||
| VSH-S2 | 0.5 | 0.1 | 2 | 13 | 11 | 7 | 1.Y07282 | - | M11-M5
VFS Series Stem VFST Series Stem |

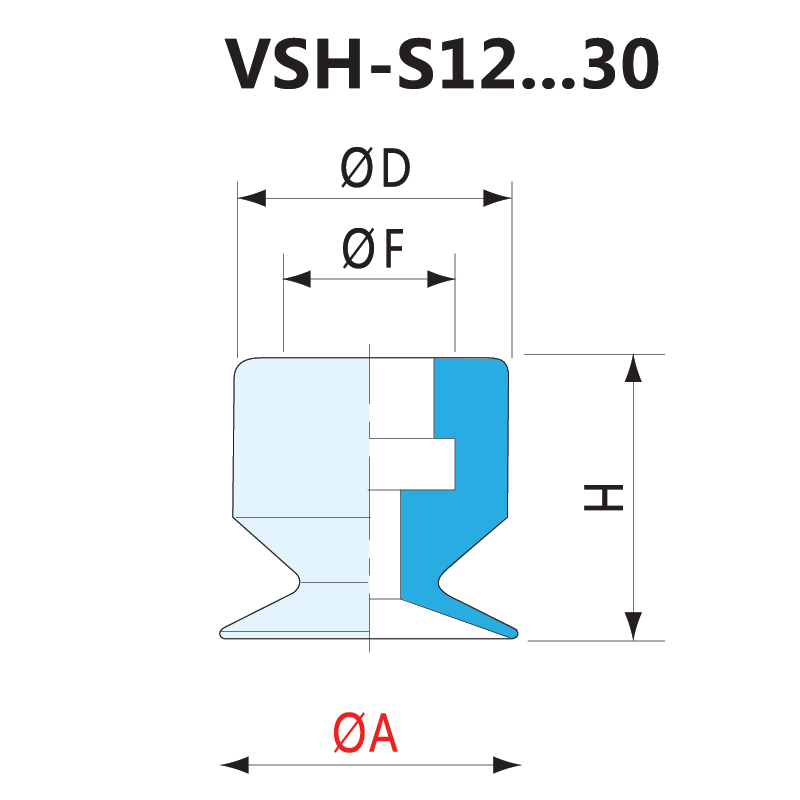

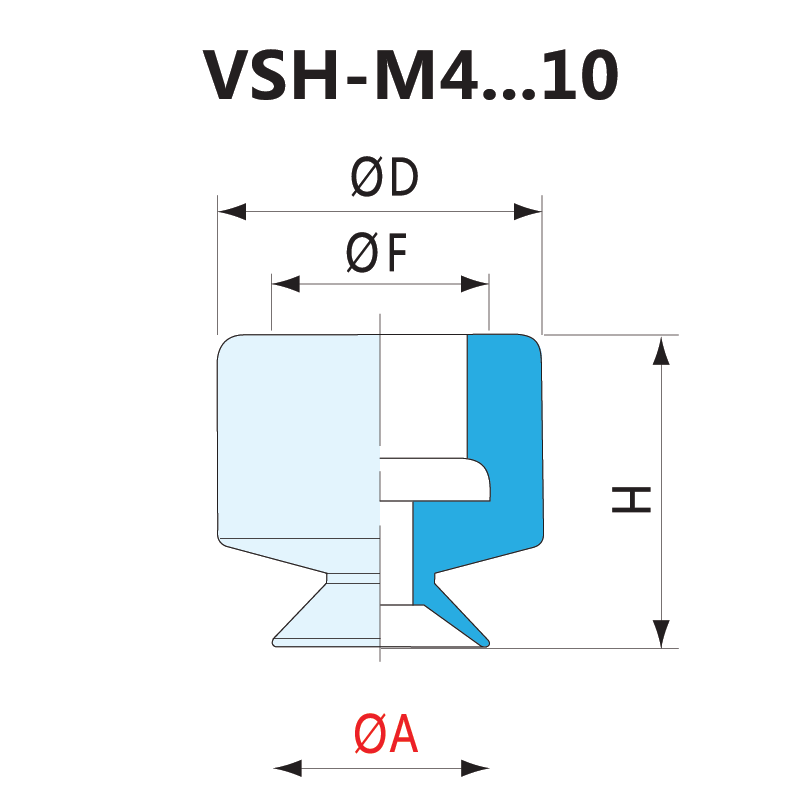

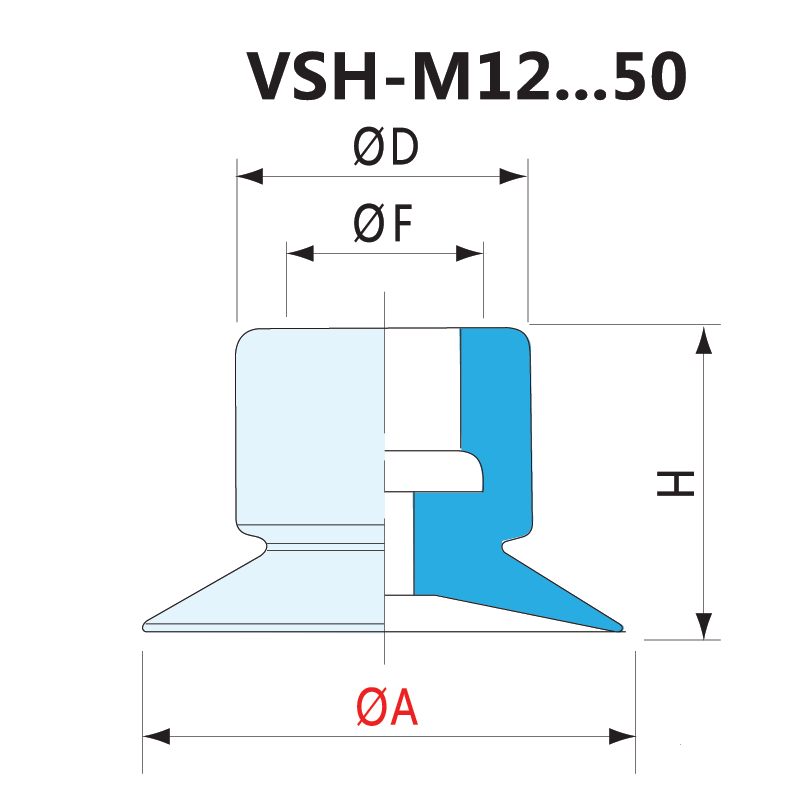

| VSH-S4 | 0.7 | 0.2 | 4 | 15 | 11 | 7 | 1.Y07283 | - | |
| VSH-S6 | 0.9 | 0.3 | 6 | 11 | 11 | 7 | 1.Y07284 | - | |
| VSH-S8 | 1.1 | 0.5 | 8 | 11 | 11 | 7 | 1.Y07285 | 1.Y00444 | |
| VSH-S10 | 1.6 | 0.8 | 10 | 11 | 11 | 7 | 1.Y07286 | 1.Y02536 | |
| VSH-S12 | 2.0 | 1.5 | 12 | 11 | 11 | 7 | 1.Y07287 | 1.Y04028 | |
| VSH-S15 | 3.7 | 1.8 | 15 | 13 | 11 | 7 | 1.Y07288 | - | |
| VSH-S20 | 6.1 | 3.0 | 20 | 13 | 12 | 7 | 1.Y07289 | - | |
| VSH-S25 | 9.4 | 4.7 | 25 | 13 | 11 | 7 | 1.Y07290 | - | |
| VSH-S30 | 15.9 | 7.9 | 30 | 12 | 13 | 7 | 1.Y07291 | - | |
| VSH-M4 | 0.7 | 0.2 | 4 | 14 | 15 | 11 | 1.Y07292 | - | VM10-G 1/8 VFM Series Stem VFMT Series Stem |
| VSH-M6 | 0.9 | 0.3 | 6 | 15 | 15 | 11 | 1.Y07293 | - | |
| VSH-M8 | 1.1 | 0.5 | 8 | 15 | 15 | 11 | 1.Y07294 | - | |
| VSH-M10 | 1.6 | 0.8 | 10 | 15 | 15 | 11 | 1.Y07295 | - | |
| VSH-M12 | 2.0 | 1.5 | 12 | 15 | 15 | 11 | 1.Y07296 | - | |
| VSH-M15 | 3.7 | 1.8 | 15 | 15.5 | 16 | 11 | 1.Y07297 | 1.Y04033 | |
| VSH-M20 | 6.1 | 3.0 | 20 | 15.5 | 16 | 11 | 1.Y07298 | 1.Y04021 | |
| VSH-M25 | 9.4 | 4.7 | 25 | 15 | 15 | 11 | 1.Y07299 | 1.Y04022 | |
| VSH-M30 | 15.9 | 7.9 | 30 | 15 | 16 | 11 | 1.Y07300 | 1.Y04023 | |
| VSH-M40 | 26.7 | 13.4 | 40 | 16 | 17 | 11 | 1.Y07301 | 1.Y00372 | |
| VSH-M50 | 38.3 | 19.1 | 50 | 15 | 20 | 11 | 1.Y07302 | - | |
Vacuum cup material properties
| Material | Shore
Hardness |
Flexibility | Abrasion
Resistance |
UV & Weather
Resistance |
Oil
Resistance |
Heat
Resistance [°C] |
Colour |
| SI: Translucent Silicone | 50 | +++ | - | . | - | -40 - 220 | Translucent |
| Vacuum Cup Fitting | Vacuum Cups |
| VM11-M5
VFS (VFS Series Stem) VFST (VFST Series Stem) |
VSH-S2~VSH-S30 |
| VM10-G 1/8 VM27-M5
VFM (VFM Series Stem) VFMT (VFMT Series Stem) |
VSH-M4~VSH-M50 |
